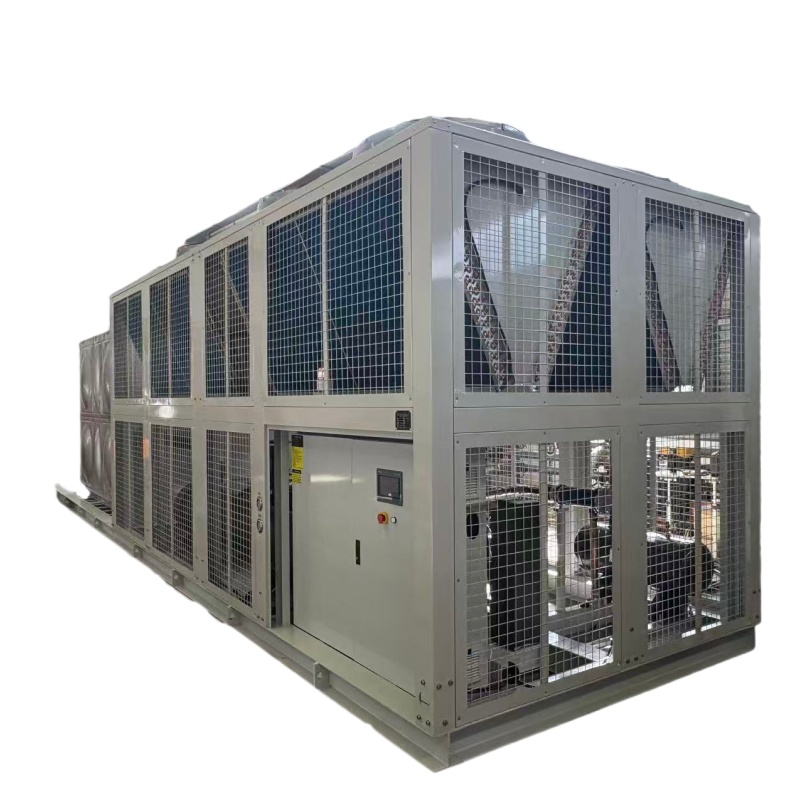

LIDESHENG 7℃ Air-cooled Screw Chiller Attached Water tank Used for New Materials Industry
The 7℃ air-cooled screw chiller with a water tank is a refrigeration device specifically designed for industrial cooling. It cools by air circulation and provides 7℃ constant temperature chilled water. It is equipped with a stainless steel water tank to store the circulating water, offering stable temperature control support for new material production.
Perkara No :
BSL-200ASEPesanan(MOQ) :
1Bayaran :
EXW/FOB/CIF/FCA/DPU/DDUAsal Produk :
CHINAwarna :
CustomizablePelabuhan Penghantaran :
SHANGHAI/NANJINGMasa Utama :
20Berat badan :
2600KG
Core components:
Leverage compressor: Features a 5:6 asymmetric toothed design, offering high efficiency, stability, energy conservation, and noise reduction, with a long lifespan (up to 40,000 hours without failure)
Air-cooled condenser: With a finned structure, it uses forced cooling by fans, eliminating the need for a cooling tower, thus saving water resources and installation space
Evaporator: Connected to the water tank, it transfers coldness to the circulating water
304 stainless steel water tank: Resistant to corrosion, water leakage prevention, providing a stable water source, and reducing temperature fluctuations
Intelligent control system: Achieves 0-100% energy regulation, with temperature control accuracy of ±0.5℃, and features multiple protection functions
Air cooled Screw chiller Working Principle
FAQ
Q1: Are you a trading company or a manufacturer?
A1: We are a trading company under Jiangsu Rongyida Co., Ltd., which owns a strong manufacturing base for temperature control equipment. This allows us to provide both factory-direct pricing and customized technical solutions.
Q2: How can I choose the right temperature control equipment for my factory?
A2: Just send us the following information:
Required temperature range;Heating/cooling medium;Power supply voltage;Industry/application (e.g., plastic, chemical, food, etc.)
Our engineers will recommend the best model for you within 24 hours.
Q3: What is your delivery time?
A3: Usually 7–15 working days for standard models and 20–30 days for customized systems. We will confirm exact lead time after order details are finalized.
Model And Technical Parameter
| Model | Unit | 100ASE | 140ASE | 180ASE | 200ASE | 230ASE | 260ASE |
| Temp. control range | Inlet water temperature 7-25℃ | ||||||
| Temp. accuracy | PID±1℃ | ||||||
| Power | AC3Φ380V 50HZ 3P+E(5M) | ||||||
| Heat transfer medium | Water | ||||||
| Cooling methad | Indirect cooling | ||||||
| Refrigeration capacity | KW | 87 | 117 | 155 | 165 | 200 | 224 |
| Pump power | HP | 35 | 45 | 60 | 70 | 80 | 90 |
| Max.pump flow | L/min | 95 | 165 | 236 | 315 | 385 | 415 |
| Max.pump pressure | Bar | 2 | 2.2 | 2.4 | 2.6 | 2.8 | 3 |
| Condenser(Air Volume) | m³/h | 39000 | 45000 | 57000 | 64800 | 76000 | 93000 |
| Evaporator(Water Flow) | m³/h | 15 | 20 | 27 | 28 | 34 | 39 |
| Single Fan Power | KW | 0.42 | 0.55 | 0.8 | 0.85 | 0.8 | 1.1 |
| Dimension（mm） | L | 2500 | 3000 | 3300 | 3000 | 3000 | 3000 |
| W | 1200 | 1300 | 1300 | 1800 | 2000 | 2300 | |
| H | 2250 | 2250 | 2450 | 2350 | 2300 | 2300 | |
| Weight | kg | 1820 | 2000 | 2200 | 2450 | 2600 | 2800 |
Remarks：
1.The table cooling conditions:chilled water inlet temperature 12℃,the outlet temperature 7℃,air temperature 35℃；
2.Power Supoly:3P-380V-50Hz,allowing voltage fluctuation ±10%,Allow the voltage difference ±2%；
3.The above data refer to refrigerant R22,if you need refrigerant R407 or other refrigerants,please contract;
4.Specification parameters and dimensions are subject to change due to product improvement without notice.
000
Process Flow Diagram
Application Case
Our Air cooled screw chiller is widely used across various industrial applications, including casting moulds, rubber vulcanization, wheel temperature control, hot press technology, carbon fiber production, and chemical reactions. It ensures precise temperature management, improving production efficiency and product quality in these processes.
