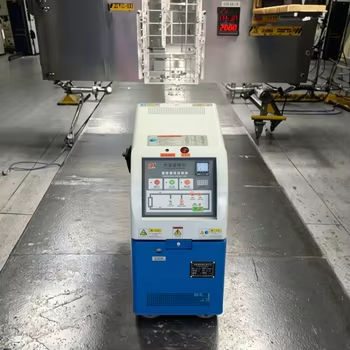

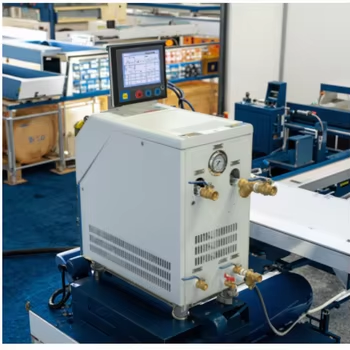

180°C Industrial-Grade Water Temperature Machine for Composite Material Molding Heating

180℃ water temperature control
180℃ water temperature control
180℃ water temperature control
180℃ water temperature control
180℃ water temperature control
180℃ water temperature control

180°C Industrial-Grade Water Temperature Machine for Composite Material Molding Heating

The 180°C industrial-grade water temperature machine is the core equipment for achieving precise temperature control in the field of composite material molding. Its design focuses on high-temperature stability, environmental compatibility, and process adaptability.

  • Perkara No :

    LEWT

  • Pesanan(MOQ) :

    1

  • Bayaran :

    EXW/FOB/CIF/FCA/DPU/DDU

  • Asal Produk :

    CHINA

  • warna :

    Customizable

  • Pelabuhan Penghantaran :

    SHANGHAI/NANJING

  • Masa Utama :

    15

  • Berat badan :

    95
Tanya Sekarang
Hot Water Temperature Control Unit

LEWT Series Water Temperature Control Unit



The intelligent PID algorithm (such as the RKC from Japan or the Omron controller) is adopted, combined with the PT100 temperature sensor to achieve ±0.2℃ high-precision temperature control. The system continuously monitors the circulating water temperature and dynamically adjusts the power of the electric heating tube (contactor / solid-state relay / thyristor regulation), and triggers dual protection (power-off + audible and visual alarm) in case of over-temperature, ensuring that the temperature fluctuation is kept within a very narrow range ±1℃.



Water Temperature Control Unit Working Principle

Replacement of Oil with Water

It completely eliminates the risk of product contamination caused by thermal oil leakage, making it particularly suitable for scenarios with strict cleanliness requirements such as medical consumables and food packaging. The specific heat capacity of water is 25% higher than that of oil, enabling faster heating speed and a reduction in energy consumption by more than 30%.

Intrinsic Safety

The pure water medium is non-toxic and non-flammable. Combined with the pipeline explosion-proof device and full negative pressure operation design, it fundamentally eliminates fire hazards and complies with the ATEX explosion-proof standard.

Process Adaptability and Quality Improvement

Dynamic Temperature Curve Control

It supports multi-stage program presets (e.g., room temperature → 50°C preheating → 130°C constant temperature → 70°C gradient cooling), meeting the needs of complex processes such as carbon fiber prepreg pressing and epoxy resin curing. For example, in the production of wind turbine blades, the water temperature machine achieves a mold surface temperature difference of ≤ ±0.5°C through segmented temperature control, significantly reducing internal stress and warping deformation of the product.

Production Efficiency Optimization

Compared with traditional electric heating wire heating, the water temperature machine can shorten the heating time of large molds (such as wind turbine blades over 50 meters) by 40%. Moreover, it does not require regular replacement of thermal oil, reducing maintenance costs by 60%.


High-Temperature Capability

It breaks through the limitation of conventional water temperature controllers (≤100°C). By increasing the system pressure (approximately 1.0MPa), the boiling point of water is raised to 180°C, meeting the requirements of high-temperature processes.

Precise Temperature Control

It adopts a PID temperature control system, which features small temperature fluctuation. This ensures stable temperature during the production process and improves the consistency of product quality.

Environmental Protection & Energy Efficiency

Using water as the heat transfer medium, it causes no oil pollution. Moreover, water has high heat transfer efficiency—compared with oil temperature controllers, it heats up faster and consumes less energy.



Safety Protection Function

It is equipped with multiple protection mechanisms:
Pressure Protection: High-pressure alarm and automatic pressure relief via safety valves to prevent overpressure operation.
Overheating Protection: Automatic power cutoff when the surface temperature of the heating tube exceeds the set value.
Liquid Level Protection: Stops heating and triggers an alarm when water is insufficient to avoid dry burning.
Electrical Isolation: The electric control box is separated from the main body to extend the service life of electrical components.

Features

Temperature control range: nlet watertemperature+15℃~150℃ /180℃

Return water temperature gauge

Heating power change-over function

Start-up automatic exhaust function

Hot water BY-PASS pressure relief loop

Stainless steel pipeline to reduce pipe resistance and rust deposit

Brands of electrical appliances: SIEMENS.OMRON.FUJI.ABB.

Schneider Disconnecting control box for electrical equipment to prolong service life if theel ectrical equipment

Multi-point temperature control unit(customized)

Water pump horsepower and heating power(customized)

Explosion-proof equipment(optional)Air blowing and return water function(optional)

Negative pressure system operation(optional)

Instant cooling shut-down function(optional)

RS485 communication function, realization of automatic management(optional)

Control method:imported microcomputer or PLC (optional) control

Perfect safety protection, fault display, maintenance without professionals



Model And Technical Parameter

Model Unit LEWT-10 LEWT-20 LEWT-30 LEWT-50 LEWT-75 LEWT-100
Temp. control range Inlet water temperature +15-180℃
Temp. accuracy PID±1℃
Power AC3Φ380V 50HZ 3P+E(5M)
Heat transfer medium Water
Cooling methad Indirect cooling
Heating capacity KW 9/12 12/18 24/30 36/45 60/75 96/120
Pump power HP 1 2 3 5 7.5 10
Max.pump flow L/min 95 153 235 315 415 500
Max.pump pressure Bar 6 6 6 12 12 12
Power supplier KW 6/11 14/20 27/33 40/49 65/81 96/120
Cooling water pipe Inch 1/2 1/2 1/2 3/4 1 1
Circulation oil pipe Inch 1 1 1.2 1.5 2 2.5
Dimension（mm） L 755 755 1100 1200 1200 1670
W 360 360 420 500 500 550
H 850 850 1100 1260 1260 1360
Weight kg 75 85 95 110 150 200



Note: The specification is subject to change due to product improvement without prior notice.



Process Flow Diagram







Application Case

Our water temperature control unit is widely used across various industrial applications, including casting moulds, rubber vulcanization, wheel temperature control, hot press technology, carbon fiber production, and chemical reactions. It ensures precise temperature management, improving production efficiency and product quality in these processes.
